Product Description

The steel strand is composed of steel products, and the steel surface can be added with zinc coating, zinc aluminum alloy layer, aluminum coating (aluminum cladding), copper coating, epoxy coating, etc. as required." Steel strands are commonly used for carrying cables, stay wires, reinforcing cores, etc. They can also be used as ground wires for overhead power transmission, barrier cables on both sides of highways, or structural cables in building structures. Galvanized, commonly used in bridges, buildings, water conservancy, energy, and geotechnical engineering


Physical Properties of Steel Strand
Nominaldiameter of Strand. In (mm)NumberNominal diameter of Coated Wires in Strand.Approximate Weight of Strand(kg/3 04.8m)Minimum Breaking Strength of Strand (KN)
Utilities GradeCommon GradeSiemens Manin GradeHigh Strength GradeExtra High Strength Grade
3/16(4.76)71.57335.1158.45212.67717.748
7/32(5.56)32.64406.22810.40915.56921.796
7/32(5.56)71.83446.85011.38717.12624.020
1/4(6.35)72.03558.45214.01221.12929.581
9/32(7.14)72.367420.46211.43218.90528.46939.812
5/16(7.94)72.649314.23423.79835.58649.820
3/8 (9.52)73.0512451.15518.90530.91548.04068.503
7/1673.6818180.06825.35541.59164.49992.523
1/2 (12.70)74.19234111.20632.91753.82383.627119.657
1/2(12.70)12.5422933.89556.49284.961118.768
9/1612.8728942.88171.616107.202149.905
5/8 (15.88)13.1836148.93080.513124.995178.819
3/4(19.05)13.8152471.172116.643181.487259.331
Physical Properties of Steel Strand
Product NameWire DiameterStandardsTensile StrengthZinc-coatingWight
Galvanized Steel Wire For ACSRΦ0.30--Φ4.77mmGB/T3428-2012Gl,G2,G3,G4 (EST)Class AΦ1.44--Φ2.0 mm<200kgΦ1.44--Φ4.77 mm<260kgΦ1.44--Φ4.77 mm<350kgSingle wire colleciion shouldbe less then 300kg to avoidjoints;wight by H wheel:350-800kg available
YB/T184-2000Level 1 zinc
ASTM B 498-2016Class A
EN50189-2000Gl,G2,G3,G4 (EST)Class A Class C Class E
BS4565-1990Standardstrength level1550/1700/1800strength levelBS443


Product Display

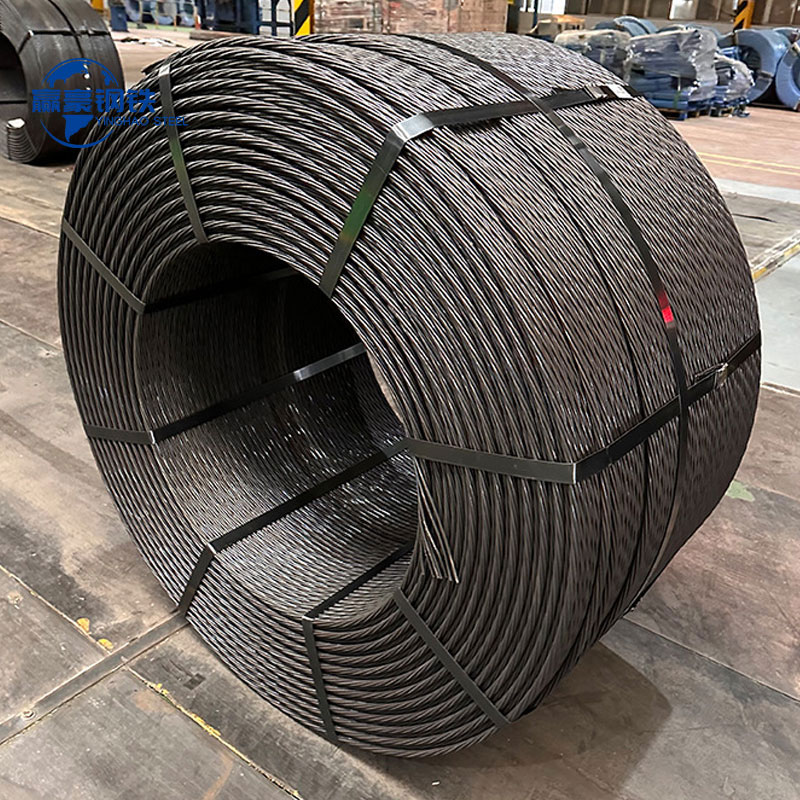

Prestressed steel strand for concrete Package and Delivery

Package:

Packing Details: Bundle with steel strip, shipped in wooden cases or wooden pallets

Delivery Details: Use trays to facilitate loading and unloading

Standard Export Seaworthy Package.

Or Package can also according to your requirements

Leading Time:

Within 7-10 days after receipt of advance payment
